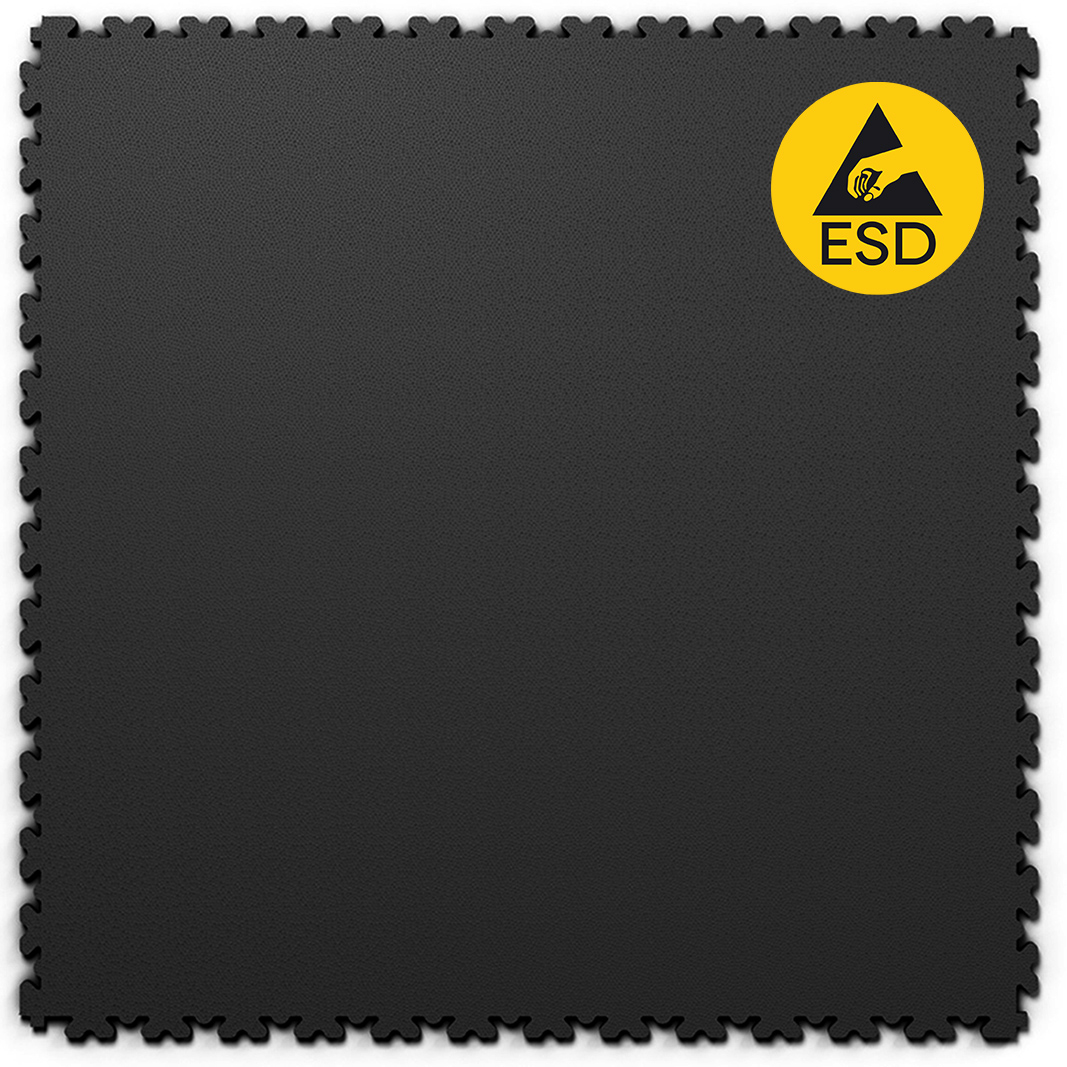

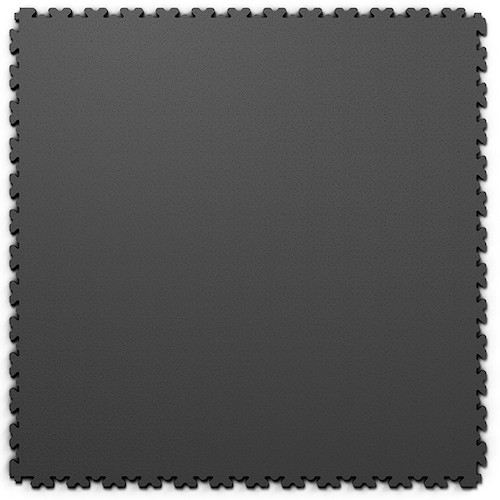

XL ESD tiles
- Dimension : 653 x 653 mm
- Thickness : 4 mm
- Lock : Visible
Main parameters of Fortelock XL ESD PVC tiles
- The XL ESD range is designed for spaces that require an electrostatically conductive floor design and for spaces with medium loads and a flat subfloor
- Where used: anywhere electrical components are produced for the automotive industry, explosion hazard zones, electrical substations, data centres, laboratories, in healthcare, etc.
- Meets the requirements of IEC 61340-4-1
- High mechanical resistance prevents handling equipment or massive point loads from damaging the surface
- Unique snakeskin design with reflections and easier cleaning
- Large format tiles (2.5 tiles cover 1 m2)
- The tiles can be assembled in sections without interrupting operations
- Highly durable homogeneous material 100% PVC
- Easy maintenance and cleaning of the floor
- Durable locking system, warranty up to 12 years, lifetime 25 years
- We have been manufacturing tiles in the Czech Republic for 30 years with a particular focus on the environment
Accessories and services:
- ESD grounding kit and tape
- Ramps
- Corners
- Skirting boards
- FREE samples can be sent
- Tiles can be rented FREE OF CHARGE
XL ESD tiles
- Dimension : 653 x 653 mm
- Thickness : 4 mm
- Lock : Visible
Count the number of tiles according to the area:
For non-rectangular shapes, choose our
ConfiguratorAccessories and services
Ramp XL ESD 653 × 145 mm
Corner XL ESD 145 × 145 mm
Skirting Boards XL 653 × 100 mm
Dr. Schutz ESD Floor cleaner 10 l (10000 m²)
Fixing tape 50 m × 240 mm
ESD Grounding kit
Glue under the base molding 290 ml
Rubber mallet
ESD Grounding tape
Skirting board white 2,5 m
Skirting board black 2,5 m
Skirting board grey 2,5 m
Dr. Schutz Cleaner spray Elatex 200 ml
Main parameters of Fortelock XL ESD PVC tiles
- The XL ESD range is designed for spaces that require an electrostatically conductive floor design and for spaces with medium loads and a flat subfloor
- Where used: anywhere electrical components are produced for the automotive industry, explosion hazard zones, electrical substations, data centres, laboratories, in healthcare, etc.
- Meets the requirements of IEC 61340-4-1
- High mechanical resistance prevents handling equipment or massive point loads from damaging the surface
- Unique snakeskin design with reflections and easier cleaning
- Large format tiles (2.5 tiles cover 1 m2)
- The tiles can be assembled in sections without interrupting operations
- Highly durable homogeneous material 100% PVC
- Easy maintenance and cleaning of the floor
- Durable locking system, warranty up to 12 years, lifetime 25 years
- We have been manufacturing tiles in the Czech Republic for 30 years with a particular focus on the environment
Accessories and services:
- ESD grounding kit and tape
- Ramps
- Corners
- Skirting boards
- FREE samples can be sent
- Tiles can be rented FREE OF CHARGE
Line
XL ESD
Design
2230 (snakeskin)
Use of the product
areas that require an electrostatically conductive floor
Material
100% PVC
Dimensions of the tile (width x length x height)
653 x 653 x 4 mm
Weight
2.4 kg
Hardness
92 Shore A
Chemical resistance
good
Total thickness
4 mm
Thickness of the surface layer
4 mm
Grounding electrical resistance
< 106 Ω
Abrasion resistance
T (deformation under static load; < 0.1 mm)
Dimensional stability
≤ 0.25 %
Colour fastness in artificial light
> than 5 (no damage)
Reaction to fire
difficult flammability
Anti-slip
R10
Standard colors
grey, graphite, black, blue, green
Warranty on wear
up to 12 years
