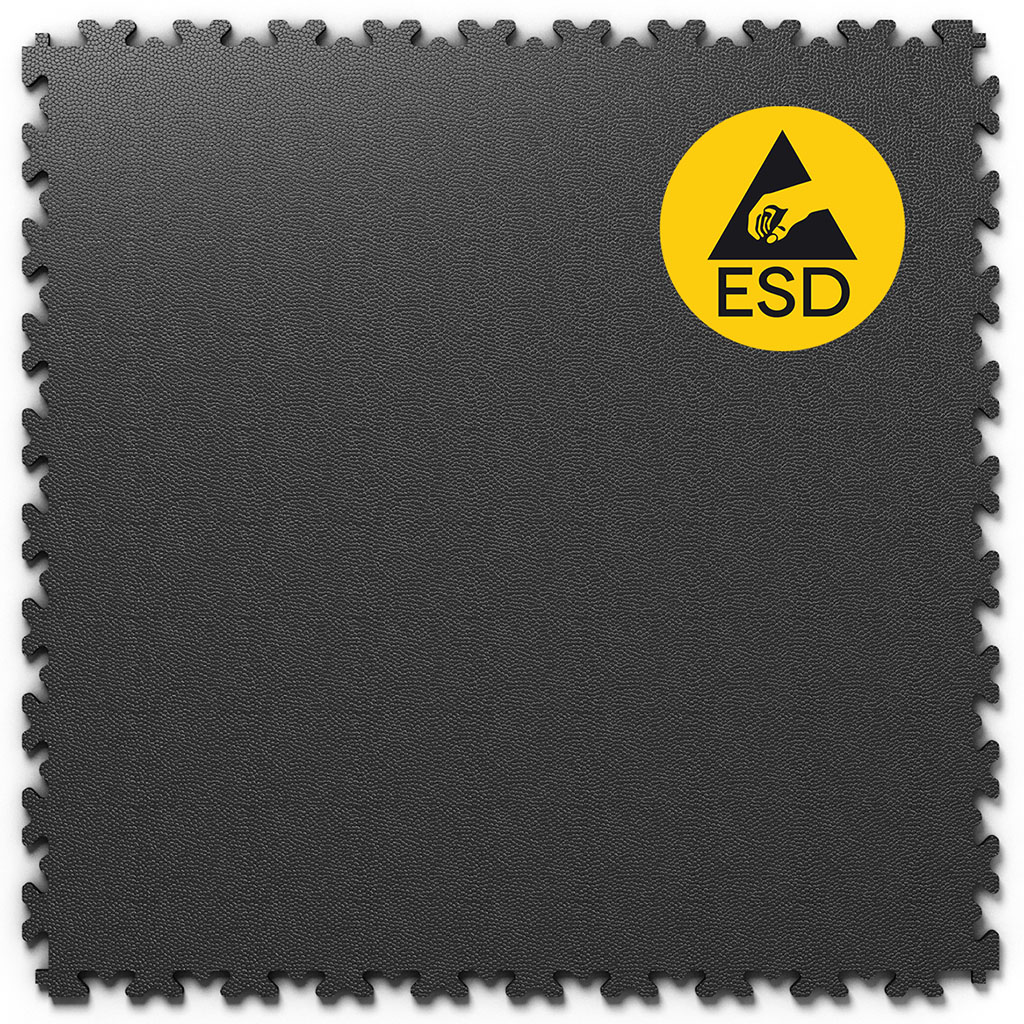

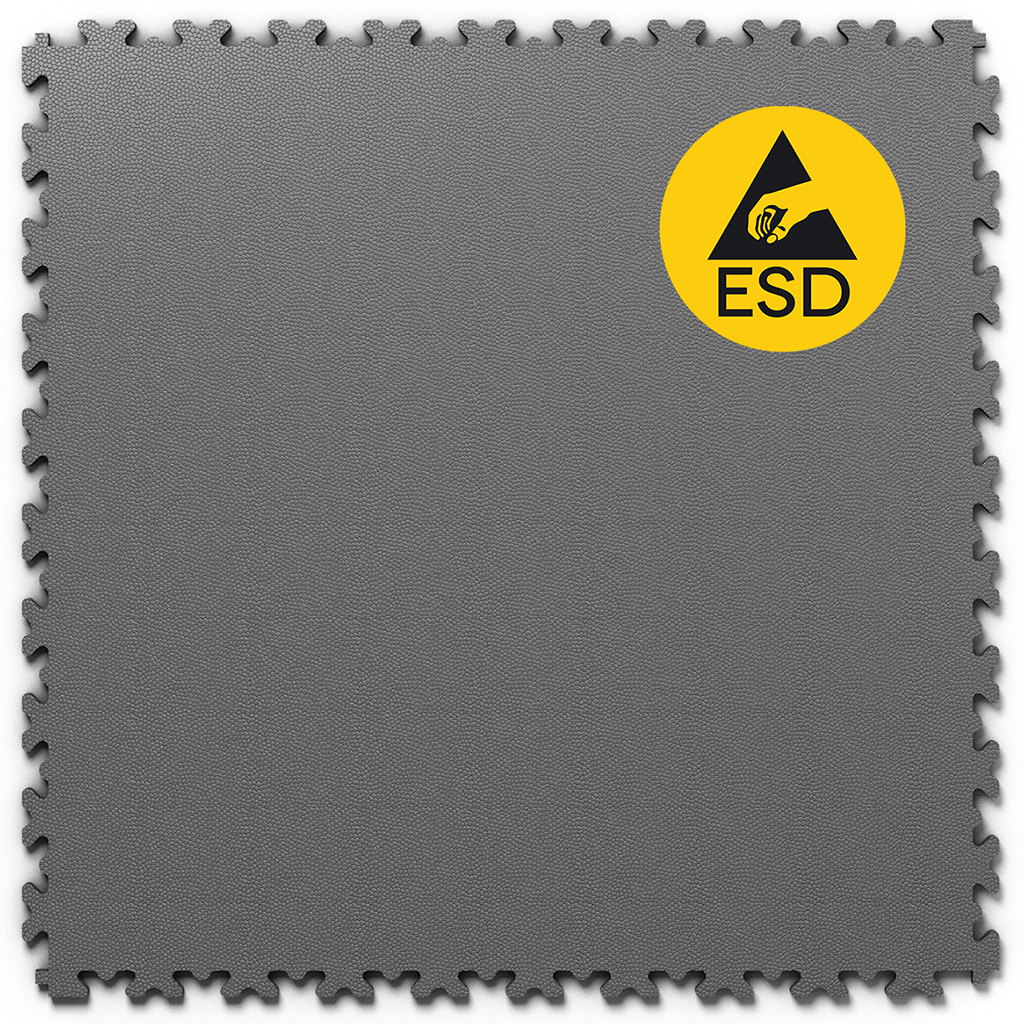

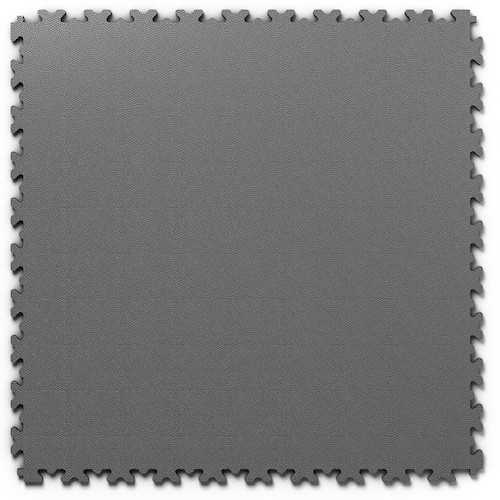

ESD tiles
- Dimension : 510,5 x 510,5 mm
- Thickness : 7 mm
- Lock : Visible
Main parameters of Fortelock ESD PVC tiles
- The ESD series is designed for rooms requiring electro-static conductive flooring
- Areas of application: for the manufacture of electrical components, for the automotive industry, areas with a risk of explosion, electrical substations, data centers, laboratories, in healthcare and others
- Complies with the requirements of IEC 61340-4-1
- Has the highest mechanical resistance, prevents damage to the surface by handling equipment or massive point loads
- Can be assembled in sections without interrupting operations
- Highly durable homogeneous material 100% PVC
- Easy maintenance and surface cleaning
- Durable lock system, warranty up to 12 years, service life 25 years
- We have been producing in the Czech Republic for 30 years with environmental emphasis
The right accessories and services:
- ESD grounding kit and tape
- ESD grounding tape
- Leading edges
- Finishing corners
- Floor moldings
- Dispatching a FREE sample possible
- Paving rental FREE
ESD tiles
- Dimension : 510,5 x 510,5 mm
- Thickness : 7 mm
- Lock : Visible
Count the number of tiles according to the area:
For non-rectangular shapes, choose our
ConfiguratorAccessories and services
Ramp ESD 510,5 × 145 mm
Corner ESD 145 × 145 mm
Skirting Boards Industry, Industry Ultra 510,5 × 100 mm
Dr. Schutz ESD Floor cleaner 10 l (10000 m²)
Fixing tape 50 m × 240 mm
ESD Grounding kit
Glue under the base molding 290 ml
Rubber mallet
ESD Grounding tape
Skirting board white 2,5 m
Skirting board black 2,5 m
Skirting board grey 2,5 m
Dr. Schutz Cleaner spray Elatex 200 ml
Main parameters of Fortelock ESD PVC tiles
- The ESD series is designed for rooms requiring electro-static conductive flooring
- Areas of application: for the manufacture of electrical components, for the automotive industry, areas with a risk of explosion, electrical substations, data centers, laboratories, in healthcare and others
- Complies with the requirements of IEC 61340-4-1
- Has the highest mechanical resistance, prevents damage to the surface by handling equipment or massive point loads
- Can be assembled in sections without interrupting operations
- Highly durable homogeneous material 100% PVC
- Easy maintenance and surface cleaning
- Durable lock system, warranty up to 12 years, service life 25 years
- We have been producing in the Czech Republic for 30 years with environmental emphasis
The right accessories and services:
- ESD grounding kit and tape
- ESD grounding tape
- Leading edges
- Finishing corners
- Floor moldings
- Dispatching a FREE sample possible
- Paving rental FREE
Series
ESD
Design
leather
Use of product
premises with demands on electrostatically conductive floor
Material
100% PVC
Tile dimensions (width x length x height)
510,5 x 510,5 x 7 mm
Weight
2,4 kg
Hardness
92 Shore A
Chemical resistance
good
Total thickness
7 mm
Surface layer thickness
7 mm
Abrasion resistance
T (deformation after static load; < 0.1 mm)
Zemnící elektrický odpor
< 106 Ω
Dimensional stability
≤ 0,25 %
Color fastness to artificial light
> than 5 (no damage)
Reaction to fire
difficult to burn
Anti-slip
R10
Standard colors
grey, graphite, black, blue, green
Wear and tear guarantee
up to 12 years
